H05Z-K 300/500V & H07Z-K 450/750V - PVC Insulated Single Core Wire

Application: H05Z-K: For fixed installations in devices and in or on lights, as well as for the house installation, especially for uses by their one low creation is demanded of smoke and corrosive gases in the fire case, however not outside.

                        H07Z-K: For the installation in electrical conduit on or under plaster or in similar closed systems especially for applications where there is a requirement for low smoke and corrosive gas creation in the event of fire, however not outside.

Construction:
         1.Conductor - Fine-stranded bare copper
         2.Insulation - Halogen-free, cross-linked polyolefin copolymerisate (EI5)

Standards: EN 50525-3-41
                      DIN EN 60228 Class 5 (construction)‍

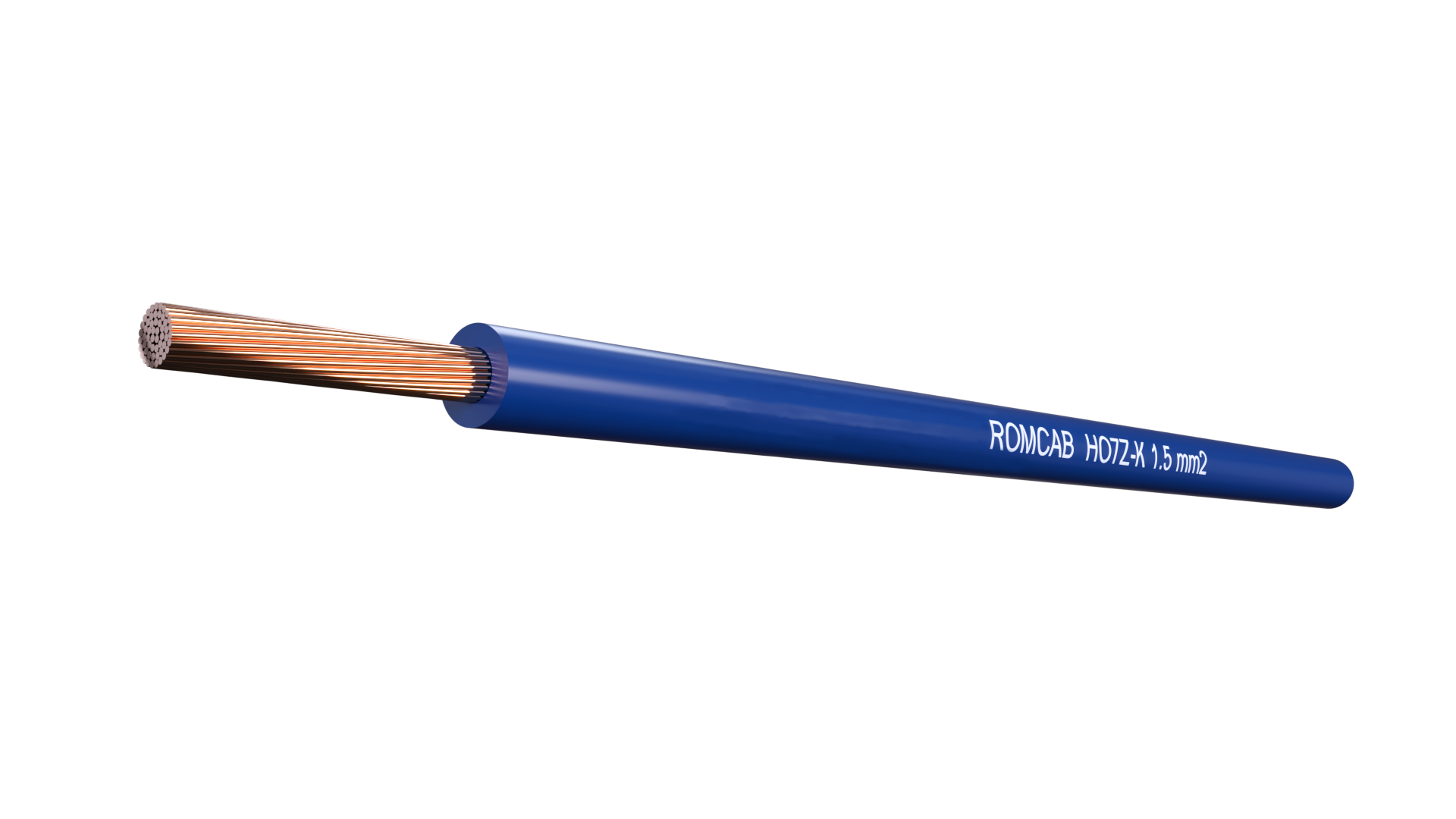

Tridimensional view

Cable Specifications

Electrical Performance:
      Nominal voltage: H05Z-K Uo/U  [V] 300/500 Volt
      Nominal voltage: H07Z-K Uo/U  [V] 450/750 Volt
      Test voltage: H05Z-K [V]AC  2000
      Test voltage: H07Z-K [V]AC  2500
       Short circuit time: max. [sec] 5
       Bending radius: min. x diameter  6

Temperature range: in motion °C +5°C till +90°C
       Operating temperature short circuit °C 250°C

Flammability: Reaction to fire EN 60332-1-2 - Eca
