YM - PVC Sheathed Wire

Application: Only for fixed installations in dry, humid and wet locations. Not suitable for laying directly open-air or in concrete.

Construction:
           1.Conductor - Copper : solid (RE) or stranded (RM)
           2.Insulation - core insulation of polyvinylchloride (PVC)
           3.Filling - EPDM
           4.Outher sheath - Polyvinylchloride (PVC), grey or special colours

Standards: ÖVE / ÖNORM E 8242
                      DIN EN 60228 Cl.1(RE) and cl.2(RM) (construction)
Core identification: Accordance to HD 308 S2
         J: One core green/yellow, other cores  are colored
         O: Every core is colored
         One core green/yellow, other cores are colored
          JZ: One core green/yellow, other cores are black with figures
          OZ: every core is black with figures
Colored cores for 7 cores : core colours: green/yellow, violet, pink, orange, brown, black, blue

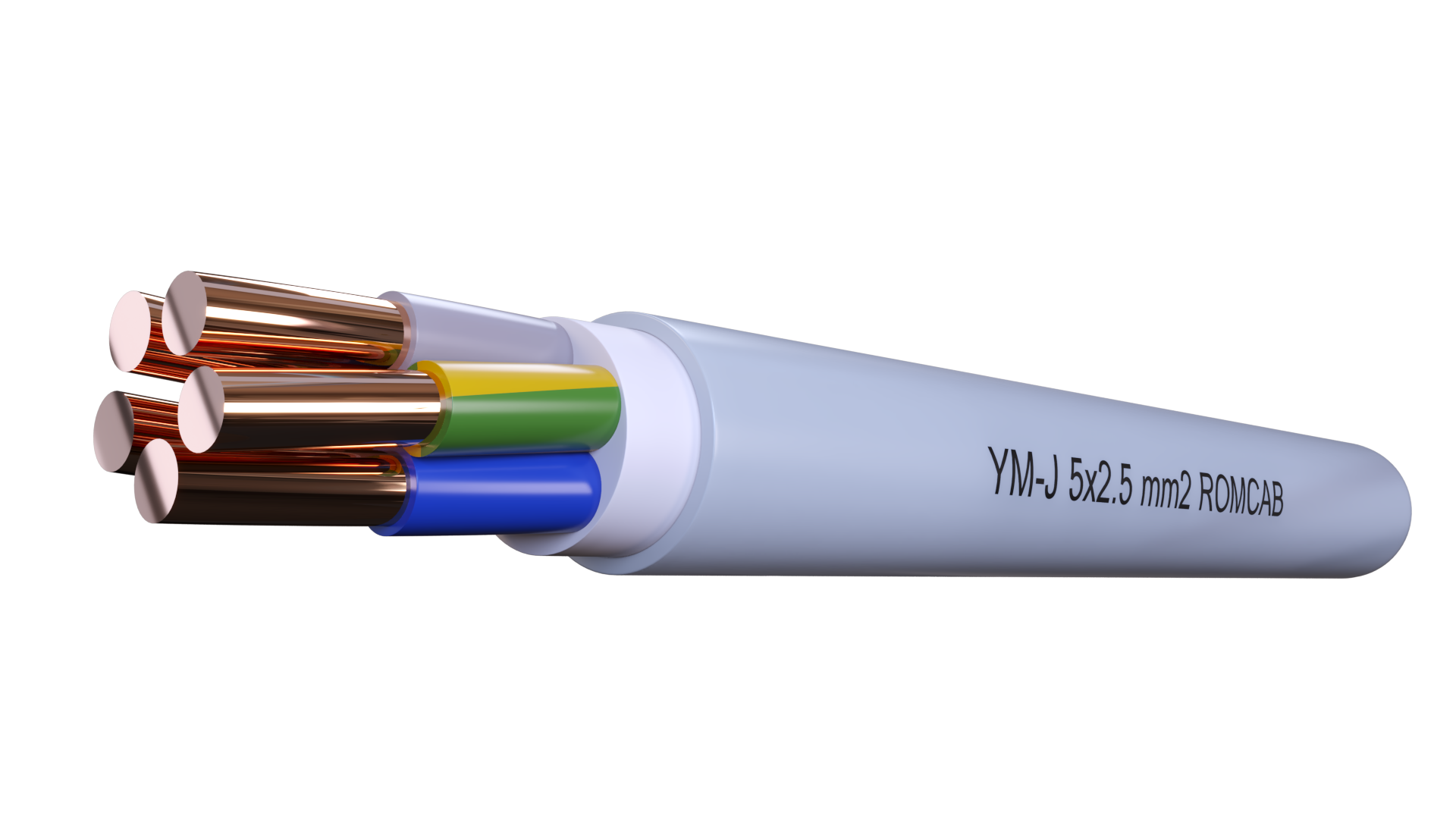

Tridimensional view

Cable Specifications

   Electrical Performance:
      Nominal Voltage: 300/ 500 Volt
      Test Voltage: [V]AC 2000
       Short circuit time max. [sec] 5
       Bending radius: Single circle x diameter 4

   Temperature range: in motion °C +5°C till +70°C
                                          Fixed °C -40°C till +70°C
                                          Operating temperature short circuit °C 160°C

   Flammability: Reaction to fire EN 60332-1-2 - Eca
