CYKY 450/750V - PVC Insulated Current Cable

Application: For installation in, on or under plaster, in dry, damp or wet rooms as well as in walls and concrete. Also suitable for installation outdoors if protected against direct sun irradiation.

Construction:
1.Conductor - Copper : solid (RE) or stranded (RM)
2.Insulation - Polyvinylchloride (PVC)
3.Filling - core covering or taping
4.Outher sheath - Polyvinylchloride (PVC), Black

Standards: CSN 34 7411
DIN EIN 60228 class 1 and 2 - Construction

License: This cable is EZU certified

Core identification: Accordance to HD 308 S2
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures

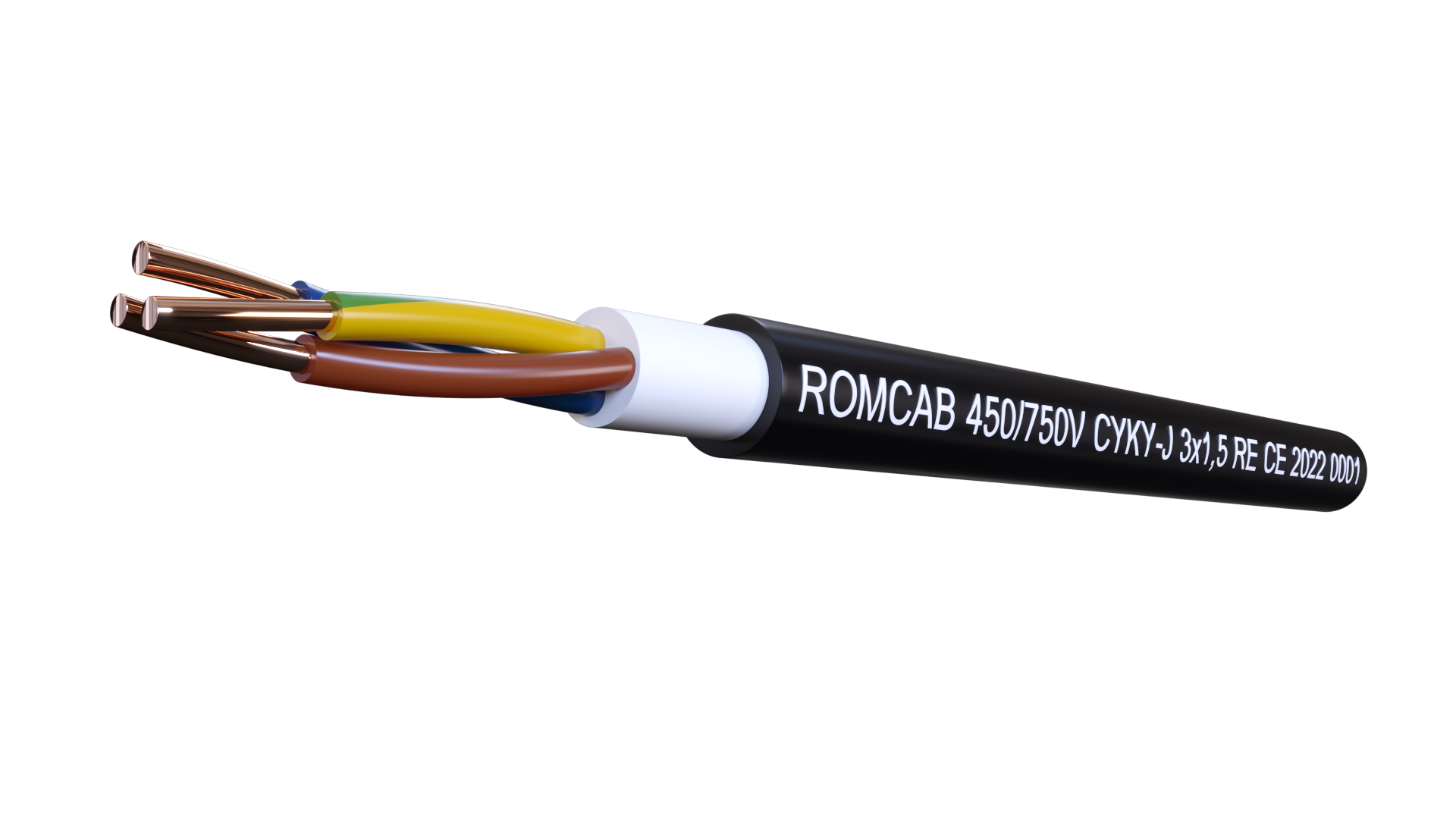

Tridimensional view

Electrical Performance:
Nominal Voltage: 450/750 Volt
Test Voltage: [V]AC 2500
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 6
                              Multi core x diameter 12

Temperature range: in motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Max. temp. short circuit °C 160°C

Fire classification CPR class: EN 50575 – Eca
