H05V-K 300/500V & H07V-K 450/750V - PVC Insulated Single Core Wire

Application: H05V-K: For protected fixed installations inside appliances and in or on lighting fittings. For installations in pipes on and under plaster, however, only for signal circuit.
‍
                        H07V-K: For indoor fixed installations in dry locations, in electrical equipment, switchboards and distributors. Should be installed in surface mounted or embedded conduits, for protected fixed installations in or on lighting fittings. Suitable for installations in machines for nominal voltages up to 1.000 V alternating current or up to 750 V to earth direct current. Cannot be used for installations under the wall surface.

Construction:
         1.Conductor - Fine-stranded bare copper
         2.Insulation - PVC

Standards: EN 50525-3-31
                      DIN EN 60228 Class 5 (construction)
License: This cable is VDE HAR certified

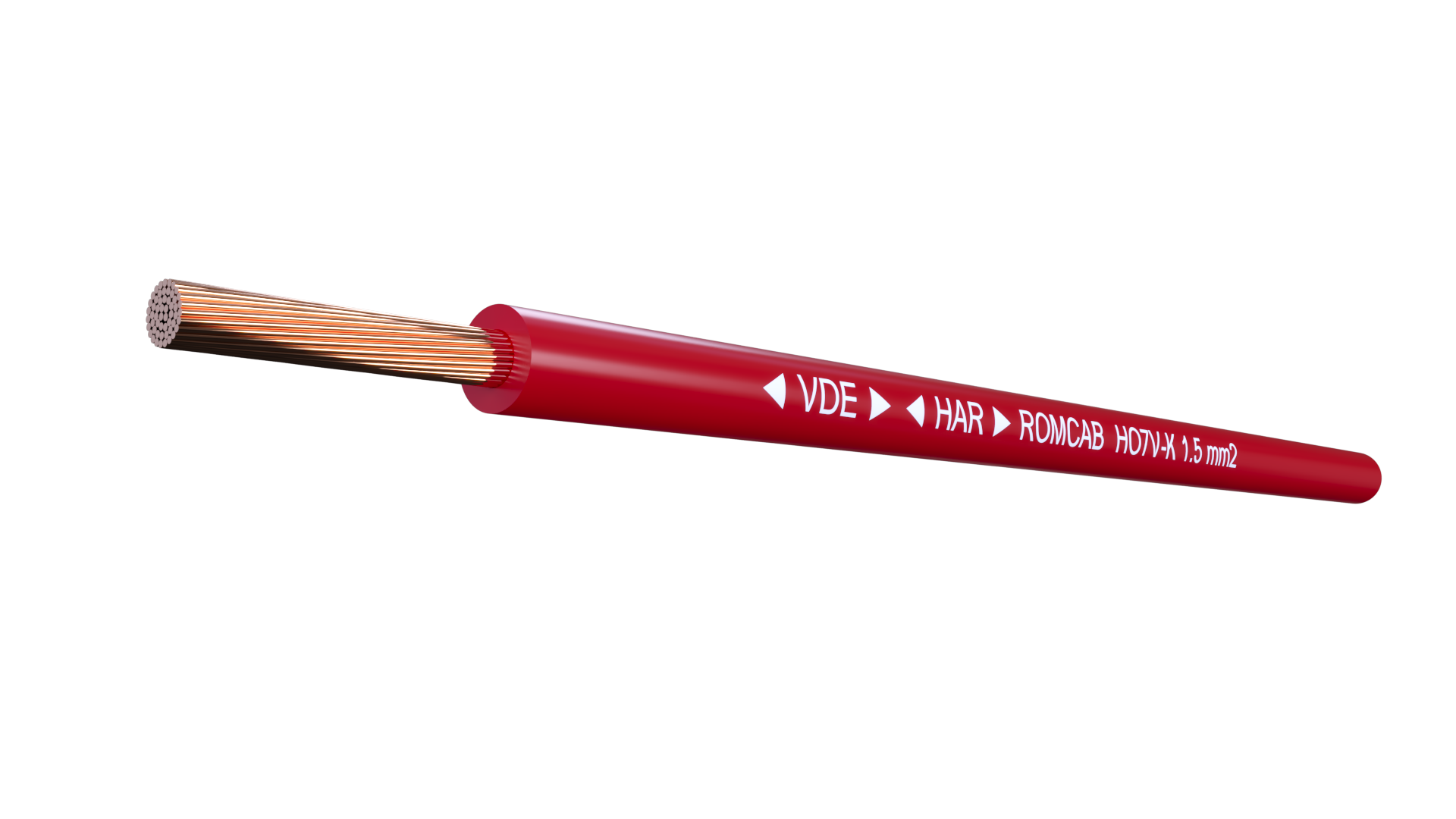

Tridimensional view

Declaration of Performance
HO5V-K

File Certification

Declaration of Performance
HO7V-K
