H05V-U 300/500V & H07V-U 450/750V - PVC Insulated Single Core Wire

Application: H05V-U: For protected fixed installations inside appliances and in or on lighting fittings. Further for installations in pipes on and under plaster, however, only for signal circuit and control circuit.

H07V-U: For indoor fixed installations in dry locations, in switchboards and distributors, installed in surface mounted or embedded conduits, or on suitably objects.

Construction:
1.Conductor - Copper: Solid (RE)
2.Insulation - Polyvinylchloride (PVC)

Standards: EN 50525-2-31;
                    IEC 60228
License: This cable is VDE HAR certified

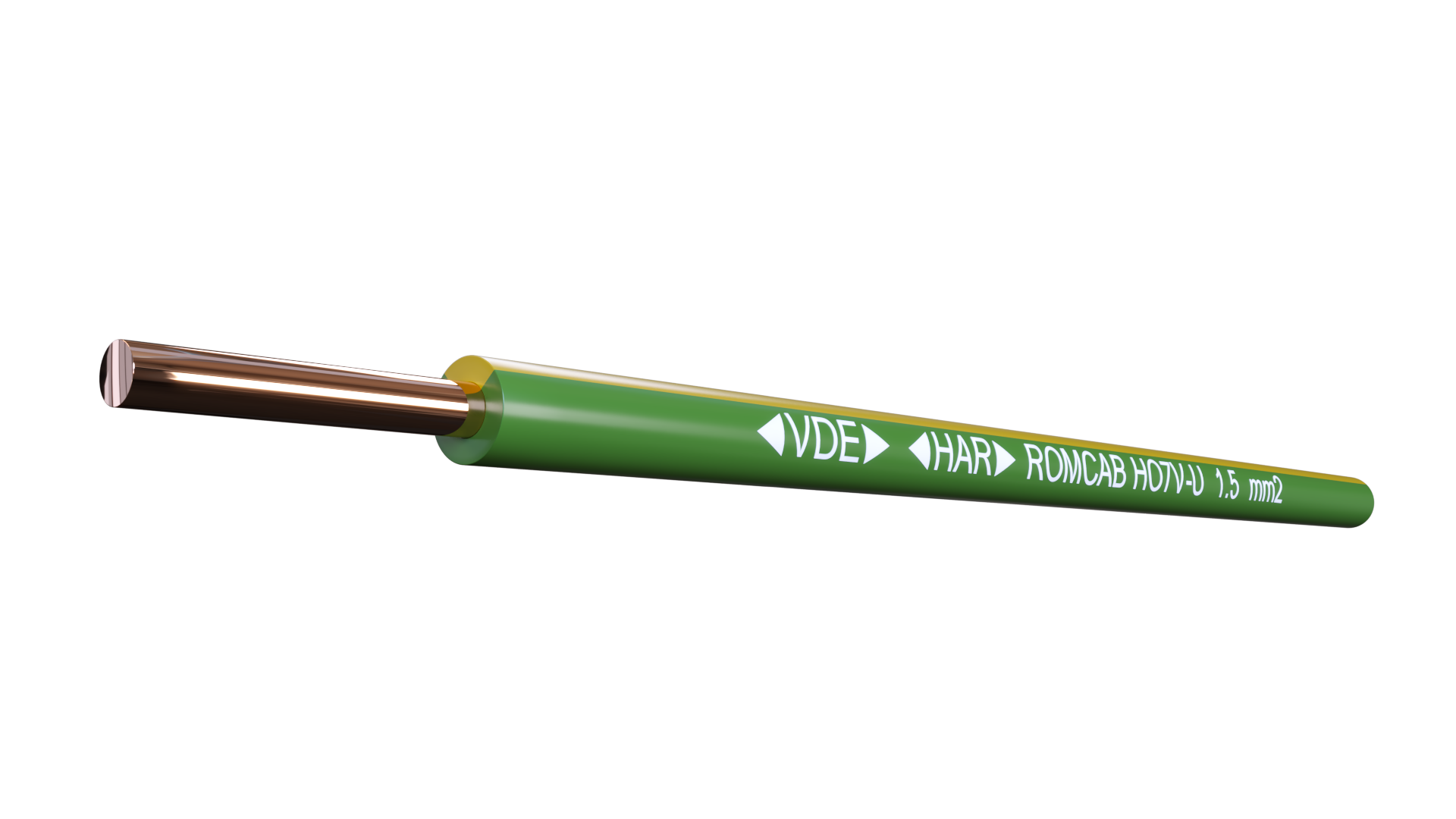

Tridimensional view

Electrical Performance:
Nominal voltage: H05V-K Uo/U   [V]  300 / 500 Volt
Nominal voltage: H07V-K Uo/U   [V]  450 / 750 Volt
Test voltage: H05V-K [V]AC  2000
Test voltage: H07V-K [V]AC  2500
Short circuit time: max. [sec] 5
Bending radius: min. x diameter  4

Temperature range: in motion °C -30°C till +70°C
Max. temp. short circuit °C 160°C

Fire classification CPR class: EN 50575 – Eca
