H07V-R 450/750V - PVC Insulated Single Core Wire

Application: For indoor fixed installations in dry locations, in switchboards and distributors, installed in surface mounted or embedded conduits, or on suitably objects.

Construction:
1.Conductor - Stranded bare copper, compacted
2.Insulation - Polyvinylchloride (PVC)

Standards: EN 50525-2-31
                    IEC 60228 class 2

License: This cable is VDE HAR certified

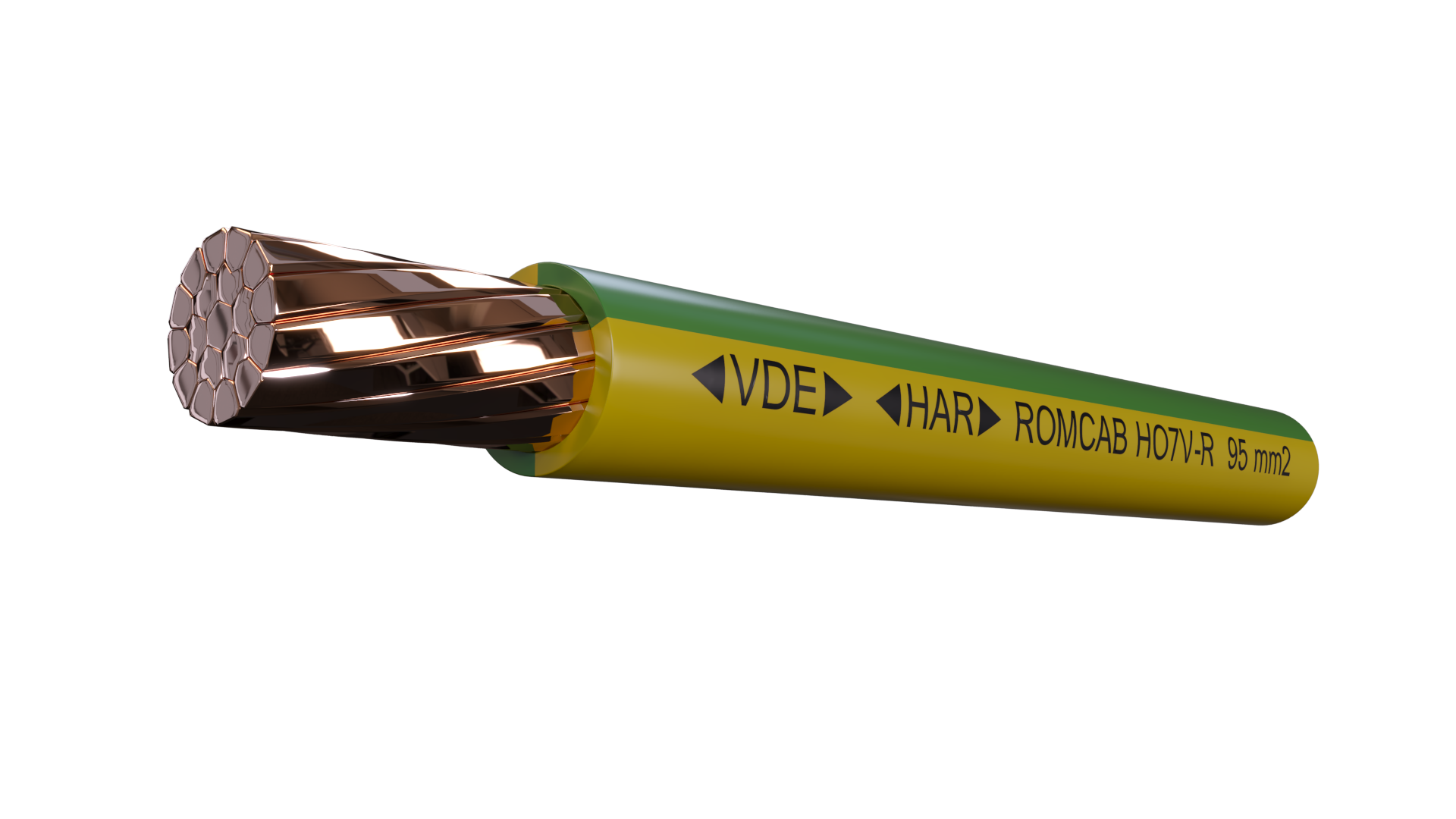

Tridimensional view

Electrical Performance:
Nominal Voltage: 450/750 Volt
Test voltage: [V]AC  2500
Short circuit time: max. [sec]  5
Bending radius: min. x diameter  4

Temperature range: -30°C till +70°C
Max. short circuit temp.: 160°C

Fire classification CPR class: EN 50575 – Eca
