H07Z-U 450/750V - Halogen-Free Single Core Wire

Application: For the internal wiring of switching systems, equipment and lights as well as for domestic installations, however, not for outdoor use.

Construction:
1.Conductor - Copper: Solid (RE)
2.Insulation - Halogen-Free, Cross linked Polyethylene

Standards: EN 50525-3-41,
IEC 60228

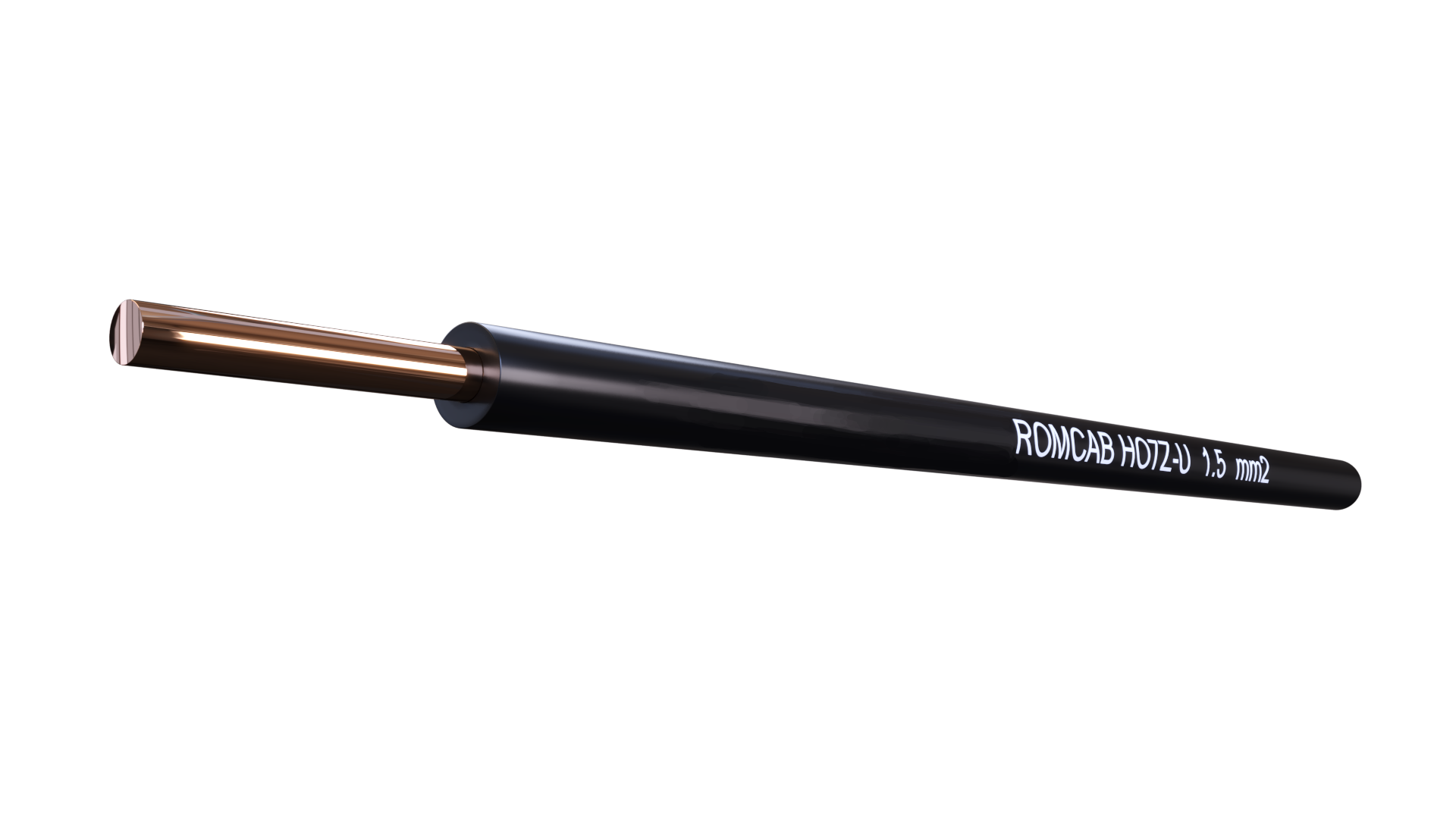

Tridimensional view

Electrical Performance:
Nominal Voltage: 450/750 Volt
Test voltage: [V]AC  2500
Short circuit time: max. [sec]  5
Bending radius: min. x diameter  6

Temperature range: in motion -40°C till +90°C
Max. temp. short circuit °C 250°C

Fire classification CPR class: EN 50575 -Dca
