NHXMH - Halogen-Free Sheathed Wire with Improved Fire Behaviour

Application: Halogen-free cable for installations, with improved fire behavior, laying on, in and under plaster, in masonry, reinforced concrete, dry, humid and wet locations.

Construction:
1.Conductor - Copper : solid (RE) or stranded (RM)
2.Insulation - Cross linked Polyethylene
3.Filling - Core covering of a halogen-free filling compound
4.Outher sheath - Halogen Free Flame Retardant (HFFR)

Standards:  DIN VDE 0250-214;
                     IEC 60228

Core identification: Accordance to HD 308 S2
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures

License: This cable is VDE certified

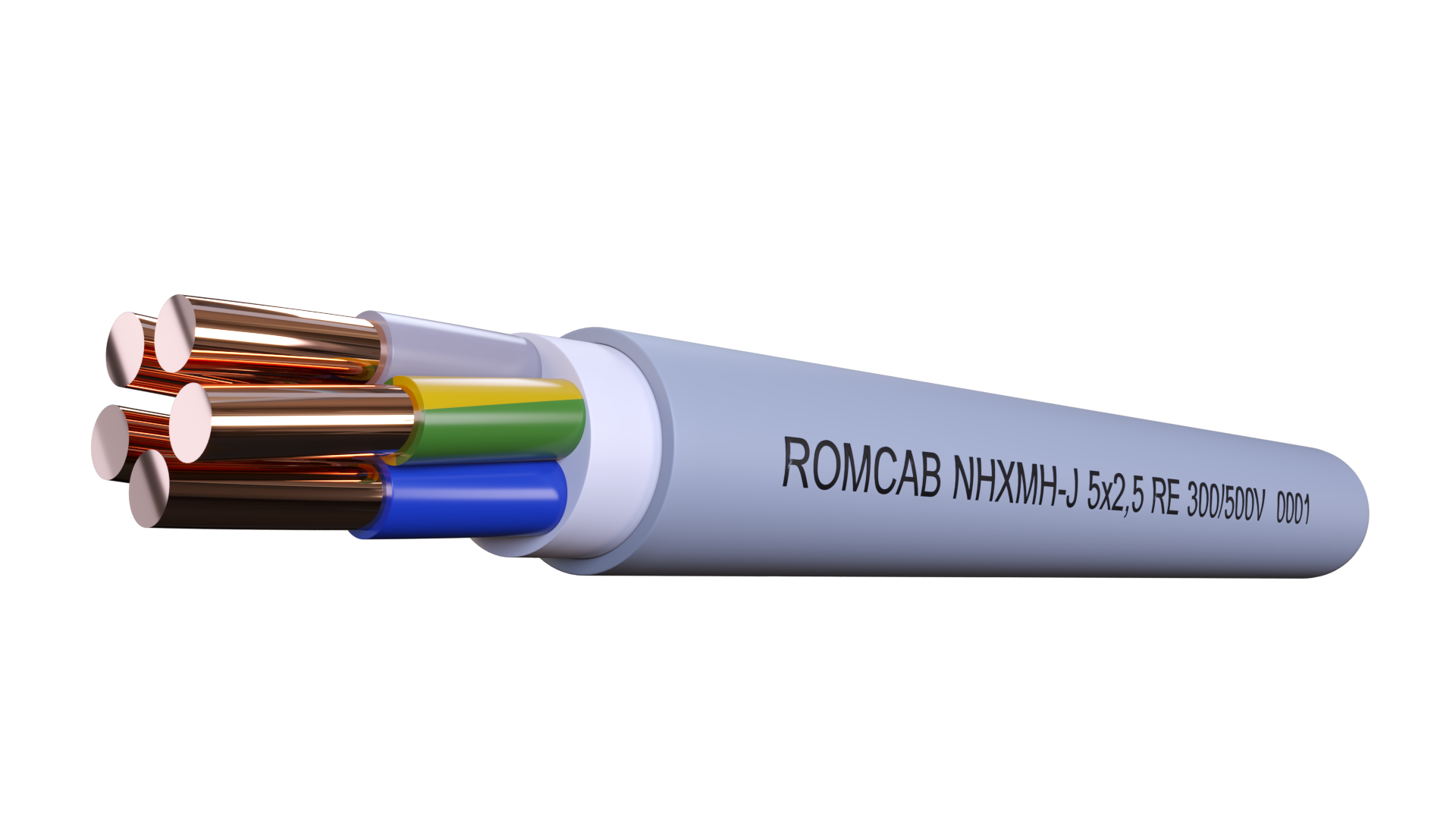

Tridimensional view

Electrical Performance:
Nominal Voltage: 300/ 500 Volt
Test Voltage: [V]AC 2000
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 4

Temperature range: in motion °C +5°C till +70°C
Fixed °C -40°C till +70°C
Max. temp. short circuit °C 160°C

Fire classification CPR class: EN 50575 - Dca
