NYM-J (AT-N05VV-U) - PVC Sheathed Wire

Application: Only for fixed installations in dry, humid and wet locations. Not suitable for laying directly open-air or in concrete.

Construction:
1.Conductor - Copper : solid (RE) or stranded (RM)
2.Insulation - Polyvinylchloride (PVC)
3.Filling - common core covering
4.Outher sheath - Polyvinylchloride (PVC), grey or special colours

Standards: DIN VDE 0250-204;
                    IEC 60228

License: This cable is VDE certified

Core identification:
Accordance to HD 308 S2
J: One core green/yellow, other cores are colored
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures

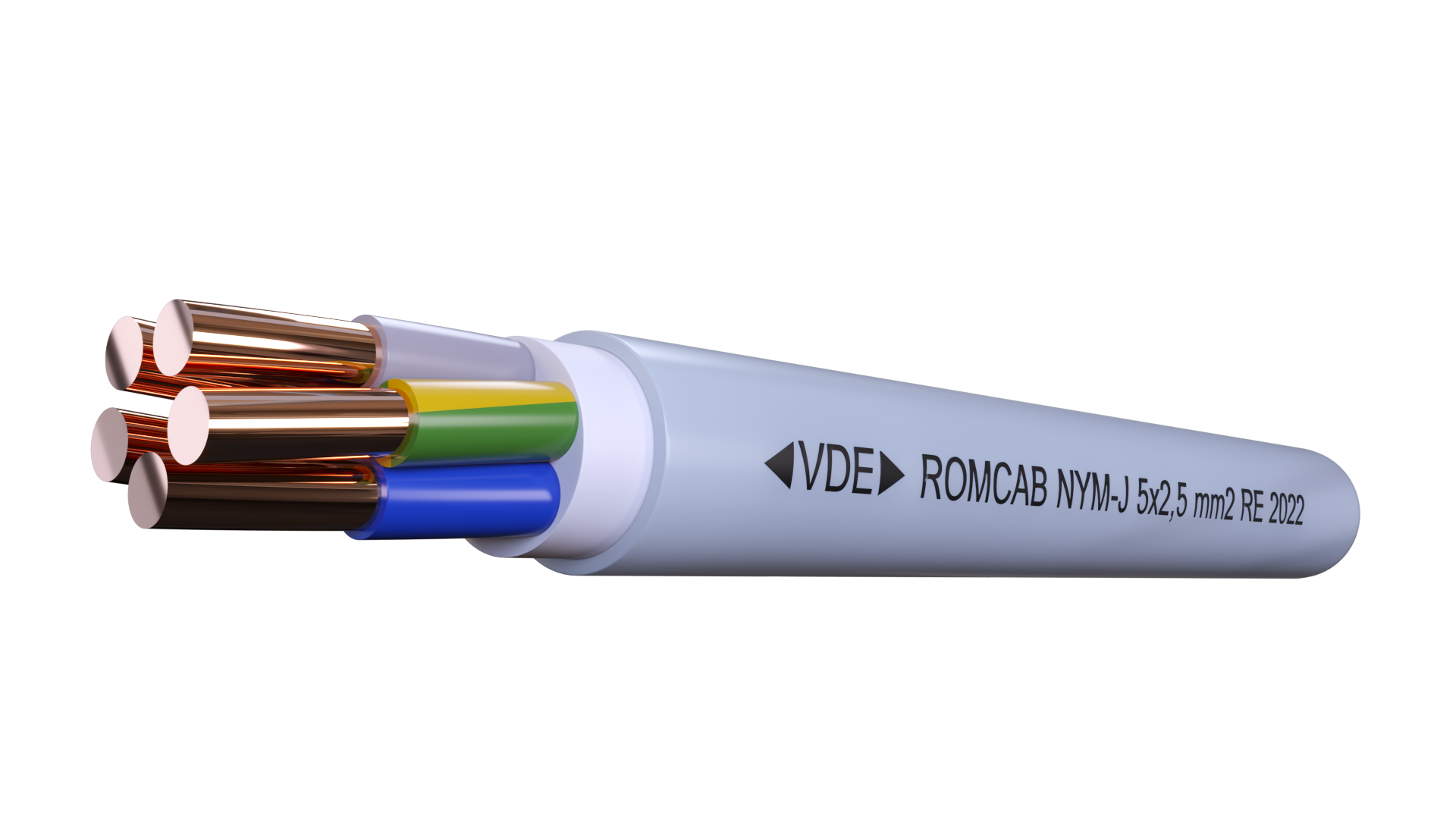

Tridimensional view

Electrical Performance:
Nominal Voltage: 300/ 500 Volt
Test Voltage: [V]AC 2000
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 4

Temperature range: in motion °C +5°C till +70°C
Fixed °C -40°C till +70°C
Max. temp. short circuit °C 160°C

Fire classification CPR class: EN 50575 – Eca
