Application: Safety cables are used in all locations where a high degree of protection against fireand fire-damage has to be provided for human life and equipment and are, therefore, subject to high security requirements. These cables may be used indoors and outdoors. They may not be installed directly into the ground and into the water. This cable conforms to Safety Class II standards.

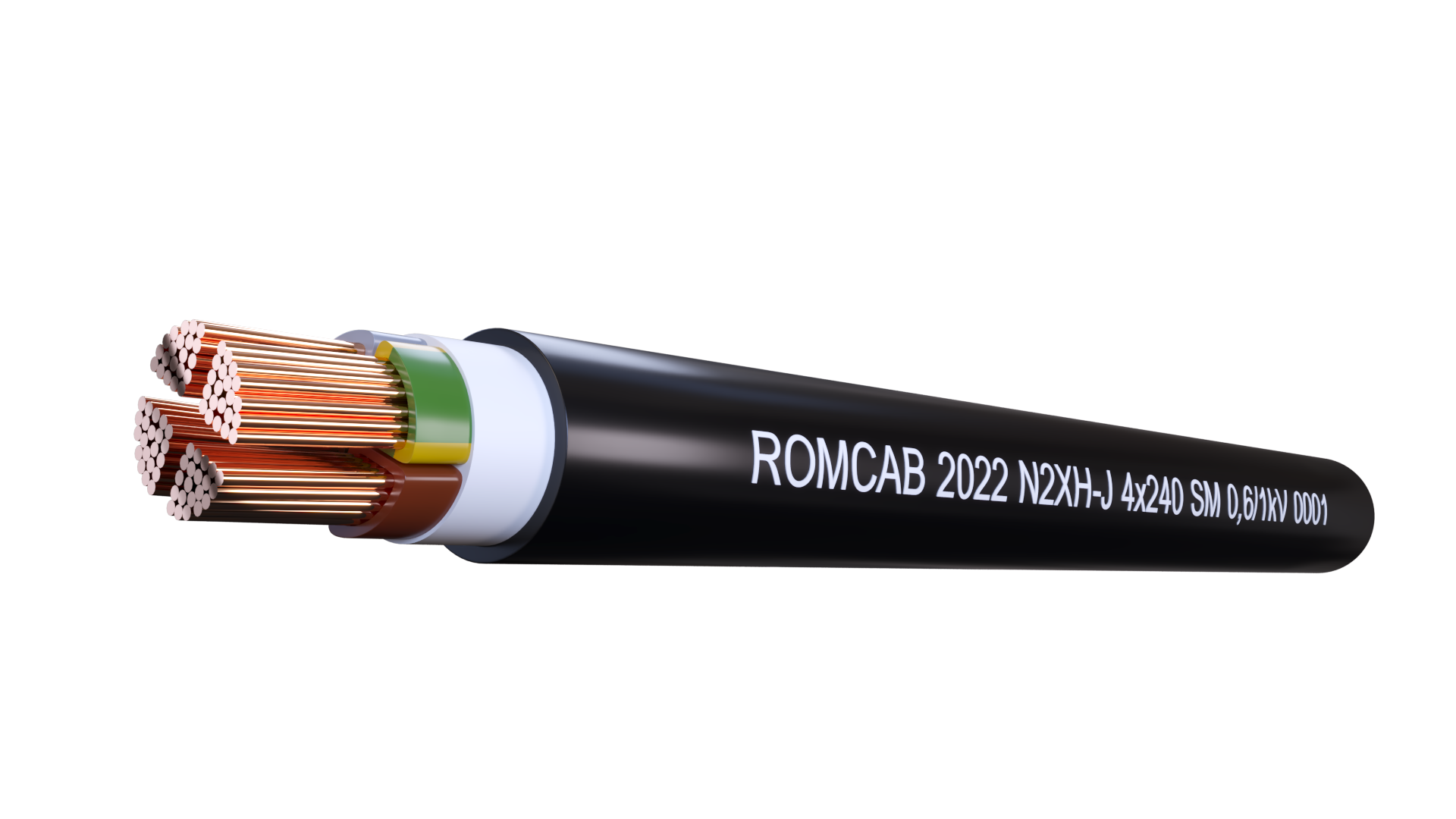

Construction:
1.Conductor - Solid or stranded bare copper, round solid (RE), round stranded (RM),sector shaped stranded (SM)
2.Insulation - Core insulation of halogen-free, cross-linked polyethylene
3.Filling - Core covering of a halogen-free compound
4.Outher sheath - Of halogen-free, cross-linked polymer compound, black
Standards: DIN VDE 0276-604
HD 604 S1 part 5 G
DIN EN 60228 class 1 and 2 (construction)
License: This cable is OICPE certified
Electrical Performance:
Nominal Voltage: 600 / 1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: Single core x diameter 15
Multi core x diameter 12
Temperature range: in motion °C -5°C till +90°C
Operating temperature: short circuit 250°C
Flammability: Tests-Flame-test acc. to VDE 0276-604
Corrosiveness of combustion gases according to DIN VDE 0482-754-2
Halogen-free according to DIN VDE 0482-754-1
Smoke density according to DIN VDE 0482 part 1034-1+2, DIN EN 61034-1+2
