ARE4*OCR 0,6/1kV - Low voltage four-pole cables with aluminum phaseconductors and copper concentric neutral, insulatedwith XLPE and PVC sheath
Application: Low voltage cables for aerial installation, insulated and sheathed with XLPE
Construction:
1.Conductor - Aluminium: Solid (RE)Strander (RM)
2.Insulation - Cross-linked polyethylene (XLPE)
3.Outher sheath - Polyvinylchloride (PVC)
Standards: DC 4126

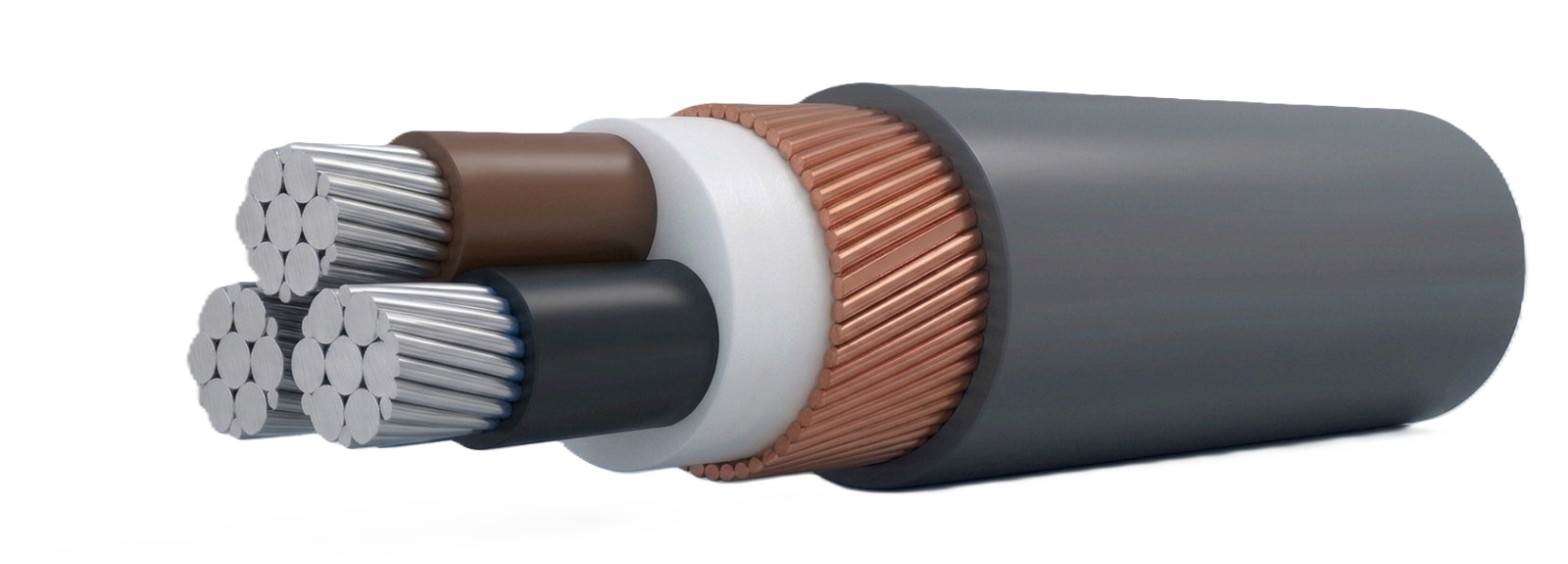

Tridimensional view
Electrical Performance:
Nominal Voltage: 600 / 1000 Volt
Short circuit time max. [sec] 5
Temperature range: -35°C till +90°C
Max. temp. short circuit: +250°C
Fire classification CPR class: EN 50575 - Fca
