COAL2X 12/20 kV - Steel-aluminum conductors with XLPE insulation foroverhead 12/20 kV power lines
Application: This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.
Construction:
1.Conductor - Steel-Aluminium
2.Insulation - Cross linked polyethylene (XLPE)
Standards: IEC 61089; SFS 5791

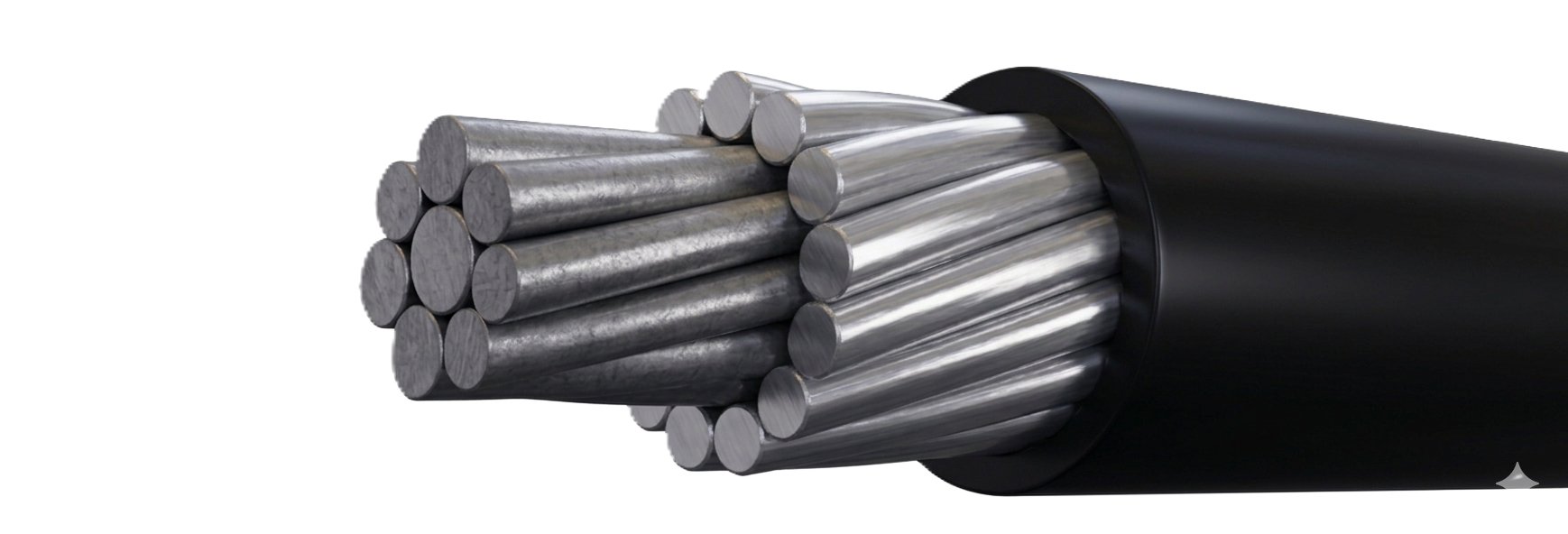

Tridimensional view
Electrical Performance:
Nominal Voltage: 12/20 kV
Short circuit time max. [sec] 5
Temperature range: -20°C till +90°C
Max. temp. short circuit: 250°C
Fire classification CPR class: EN 50575 - Fca
