EYY 0,6/1kV - PVC Insulated Heavy Current Cable

Application: This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

Construction:
                     1.Conductor - Copper : solid (RE) or stranded (RM/SM) bare copper
                     2.Insulation - Core insulation of polyvinylchloride (PVC)
                     3.Filling - PVC core covering or taping
                     4.Outher sheath - Polyvinylchloride (PVC), Black ,UV-resistant

Standards:  ÖVE-K 603
                       DIN EN 60228 class 1 and 2 - Construction
‍
Core identification: Accordance to HD 308 S2
                                      JZ: One core green/yellow, other cores are black with figures
                                     OZ: every core is black with figures

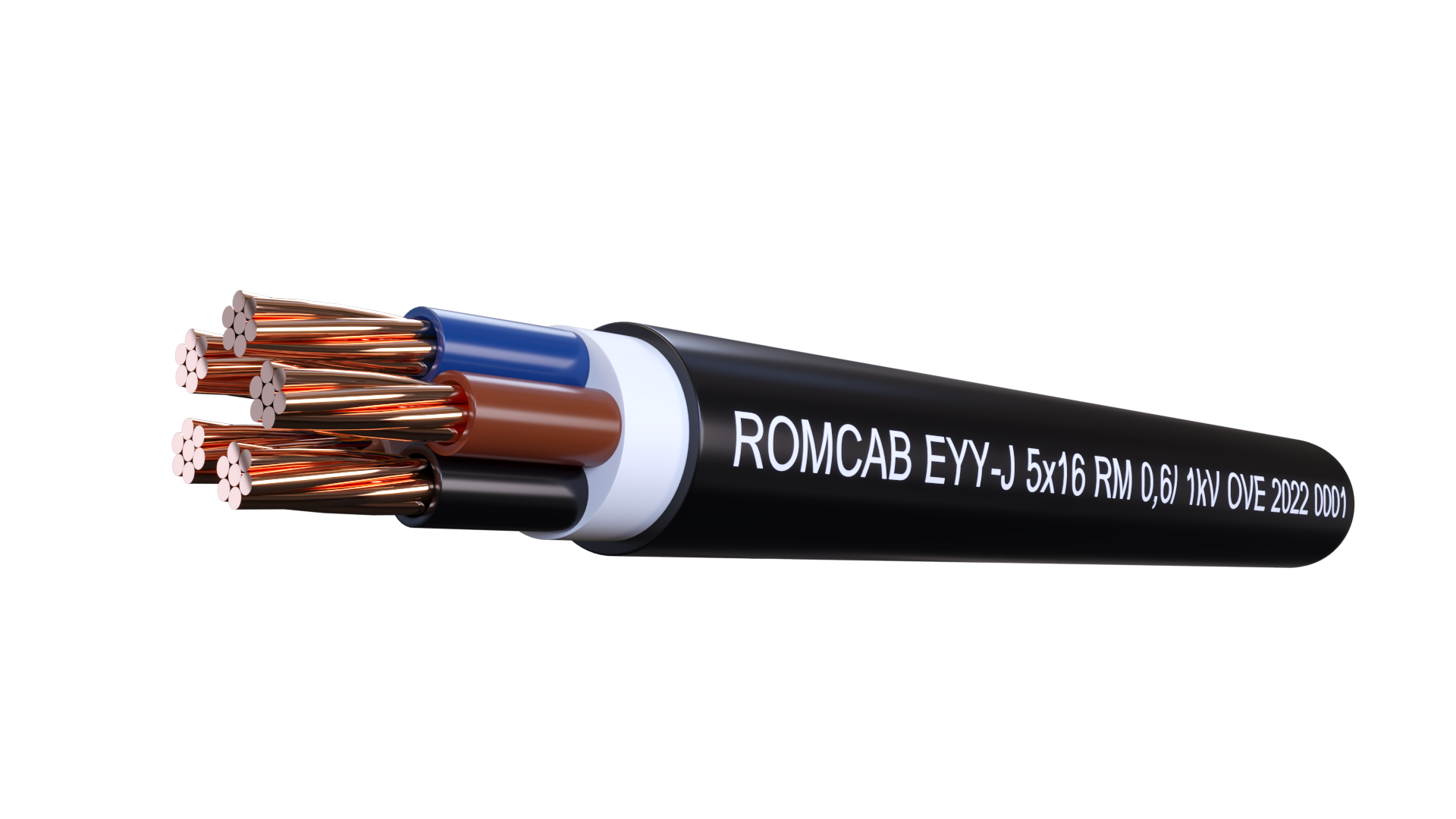

Tridimensional view

Declaration of Performance
