H1Z2Z2-K 1.5/1.5kV DC Electric cable for photovoltaic systems

Application: Cables used in photovoltaic systems for permanent outdoor use. This versatile single conductor cable is designed to meet the varying needs of the solar industry. Suitable for wet, damp and humid locations

Construction:
                  1.Conductor: Flexible tinned copper conductor
                  2.Insulation: Core insulation of halogen-free, cross-linked polyethylene
                  3.Outer sheath: Halogen-free, cross-linked polyethylene

Standards: EN 50618
DIN EN 60228 Class 5 (construction)
‍
License: This cable is EZU certified

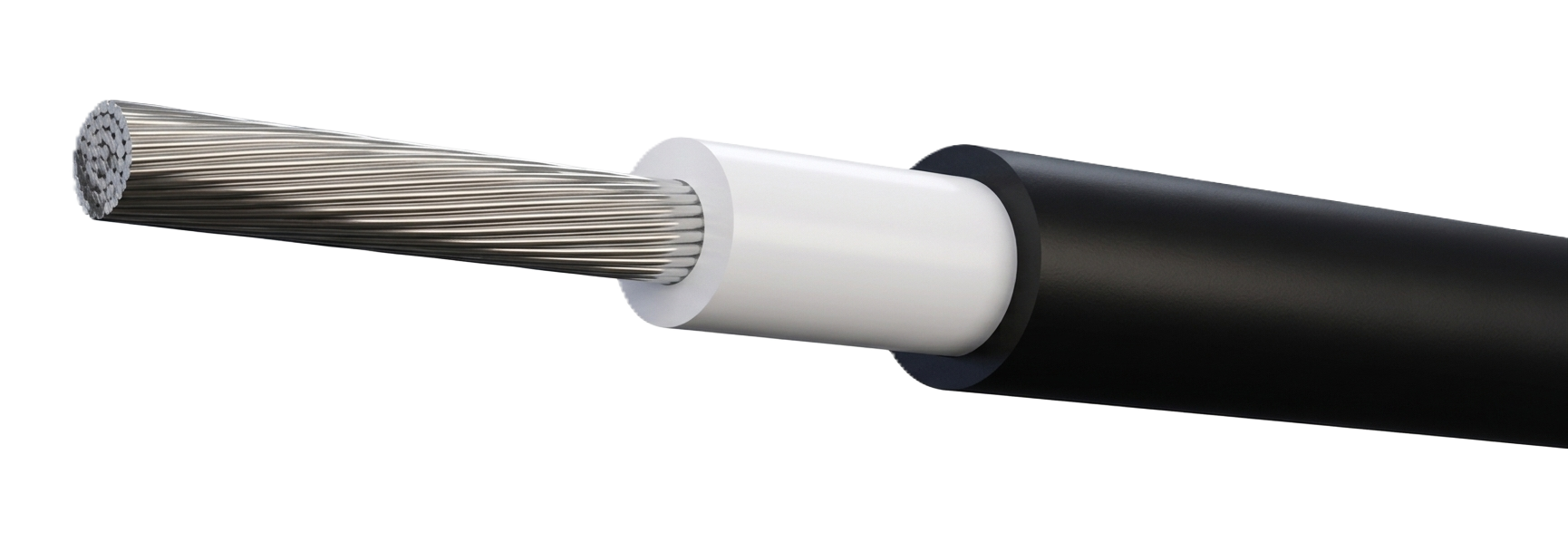

Tridimensional view

Cable Specifications

   Electrical Performance:
      Rated Voltage: DC 1.5 / 1.5 kV
                                  AC 1.0 / 1.0 kV
      Max. perm. operating voltage DC: 1.8 / 1.8 kV
      Max. perm. operating voltage AC: 1.2 / 1.2 kV
      Nominal voltage: Uo/U 600/1000 Volt
      Test voltage: 6500 V
      Short circuit time max [sec] 5
      Bending radius x diameter 6

Temperature range: fixed -40°C till +90°C

Fire classification CPR class:
Reaction to fire EN 60332-1-2 Dca
