NA2XY 0,6/1kV - Power cable with XLPE insulation and PVC sheath

Application: For fixed installation in building, in free air, in ground and in water.

Construction:
                     1.Conductor - Round or sector-shaped conductor according to SR EN 60228
                     2.Insulation - Crosslinked polyethylene (XLPE) , type DIX 3
                     3.Filling - Extruded inner covering
                     4.Outher sheath - PVC, DMV 6 type

Standards:  SR HD 603 S1
                       IEC 6050-1
                       Construction according to EN 60228
‍
Core identification: Accordance to HD 308 S2
‍

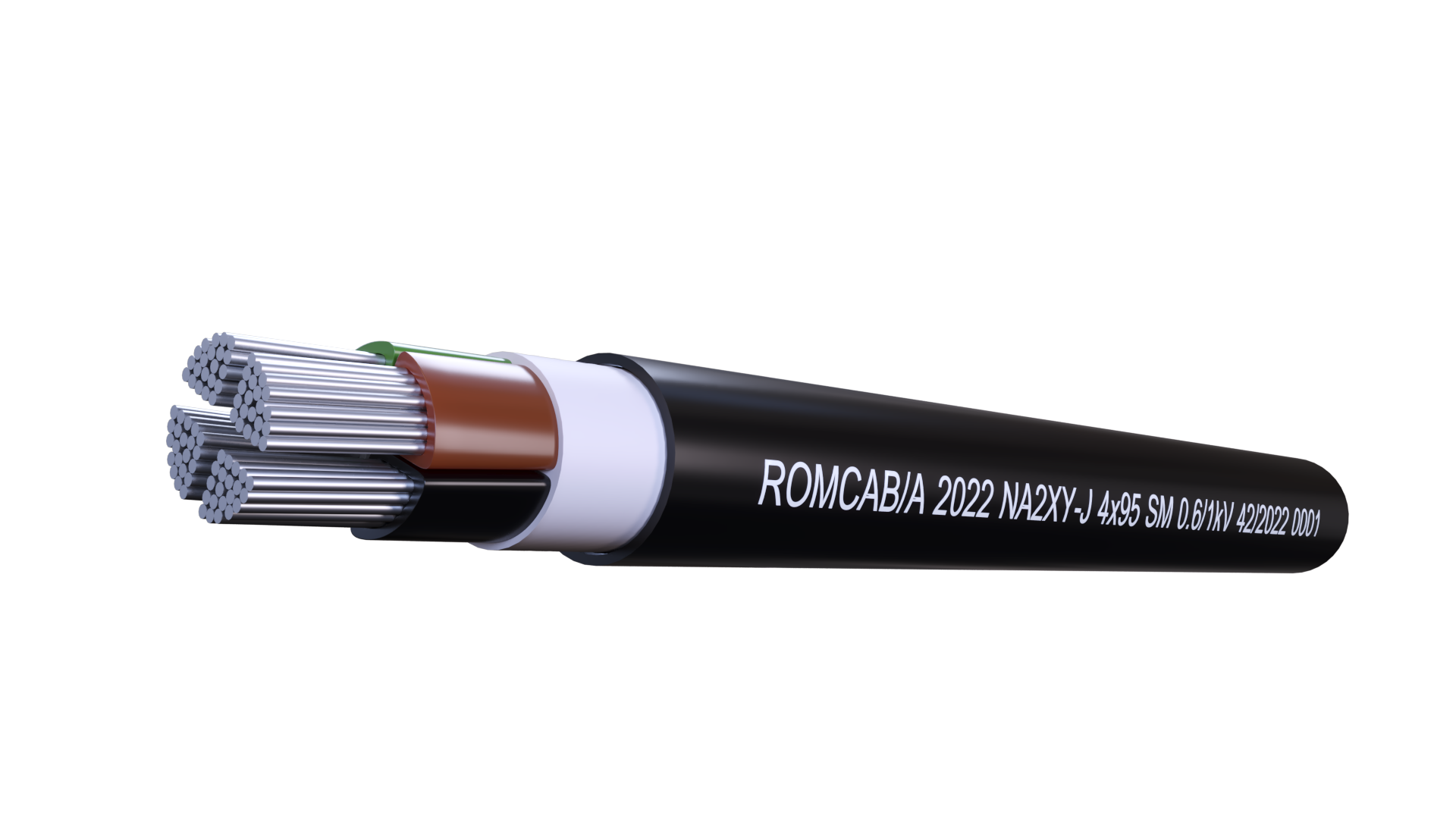

Tridimensional view

Declaration of Performance

Cable Specifications

Electrical Performance:
      Voltage rating : Uo/U (Um) 0,6/1 (1,2)kV
      Test voltage : 4kV
      Short circuit time max. [sec] 5
      Bending radius:  single core x diameter 15
                                       Multi core x diameter 12

Temperature range: Flexed : -5°C till +70°C
Fixed : -35°C till +70°C
Maximum short circuit temperature:250°C (max 5 seconds)
