NAYY-J 0,6/1kV – PVC Insulated Cable with Aluminium Conductor

Application: This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

Construction:
                     1.Conductor - solid (SE) or stranded (RM/SM) aluminium wires
                     2.Insulation - core insulation of polyvinylchloride (PVC)
                     3.Filling - PVC core covering or taping
                     4.Outher sheath - outer sheath of polyvinylchloride(PVC), black

Standards: HD 603 S1/3G
                      DIN EN 60228 class 1 and 2 – Construction
                      HD 308 S2 (core identification)
                      Construction according to EN 60228
License: This cable is VDE certified

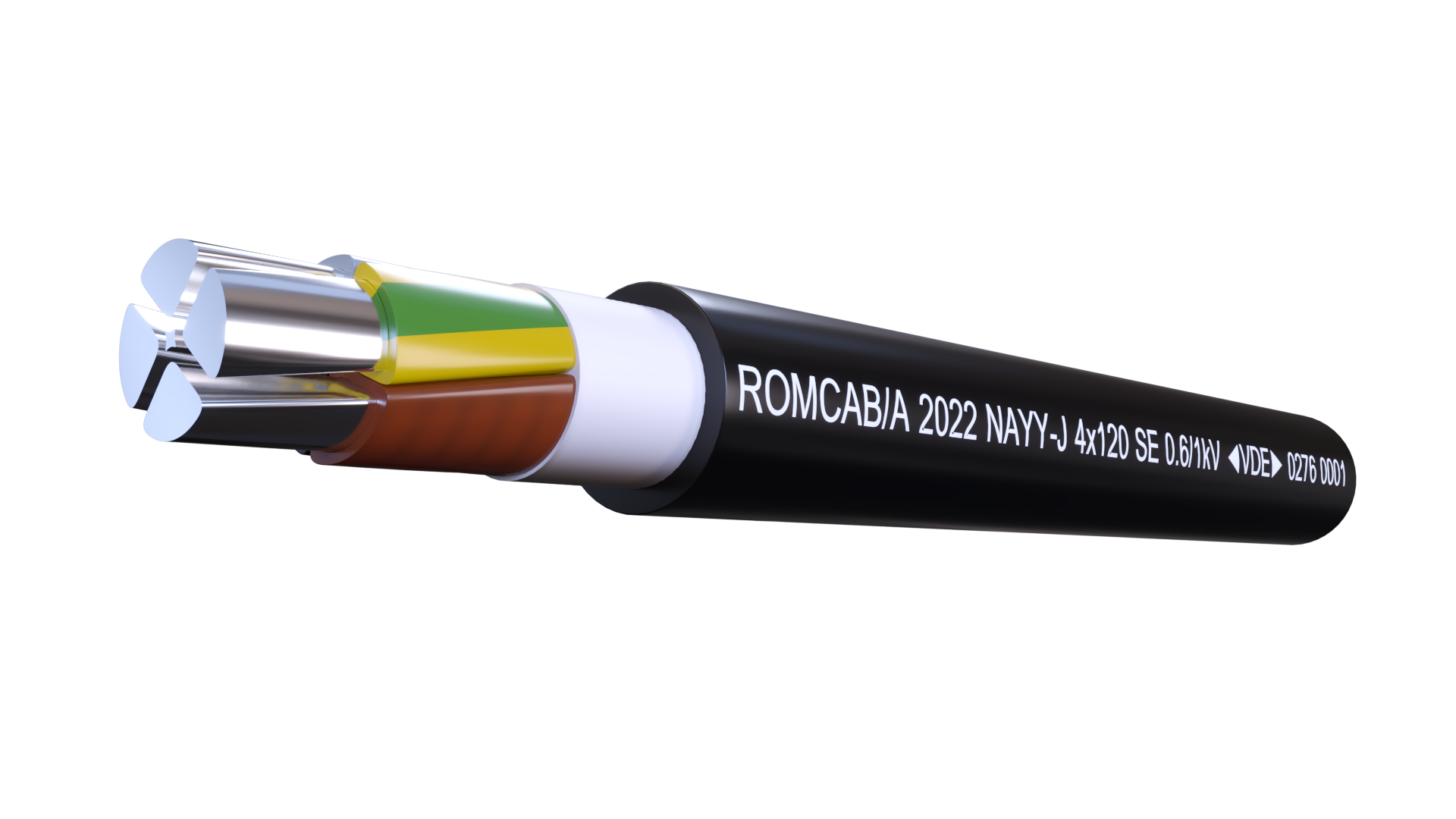

Tridimensional view
