NYY 0,6/1kV - PVC Insulated Heavy Current Cable

Application: This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

Construction:
                     1.Conductor - Copper : solid (RE) or stranded (RM)
                     2.Insulation - core insulation of polyvinylchloride (PVC)
                     3.Filling - core covering or taping
                     4.Outher sheath - Polyvinylchloride (PVC), Black UV-resistant

‍Standards: DIN VDE 0276-603
                      HD 603 S1:1994 + A2:2003
                      DIN EIN 60228 class 1 and 2 - Construction
                      EN 60332-1-2
‍
License: This cable is VDE certified
‍
Core identification: Accordance to HD 308 S2
           JZ: One core green/yellow, other cores are black with figures
           OZ: every core is black with figures

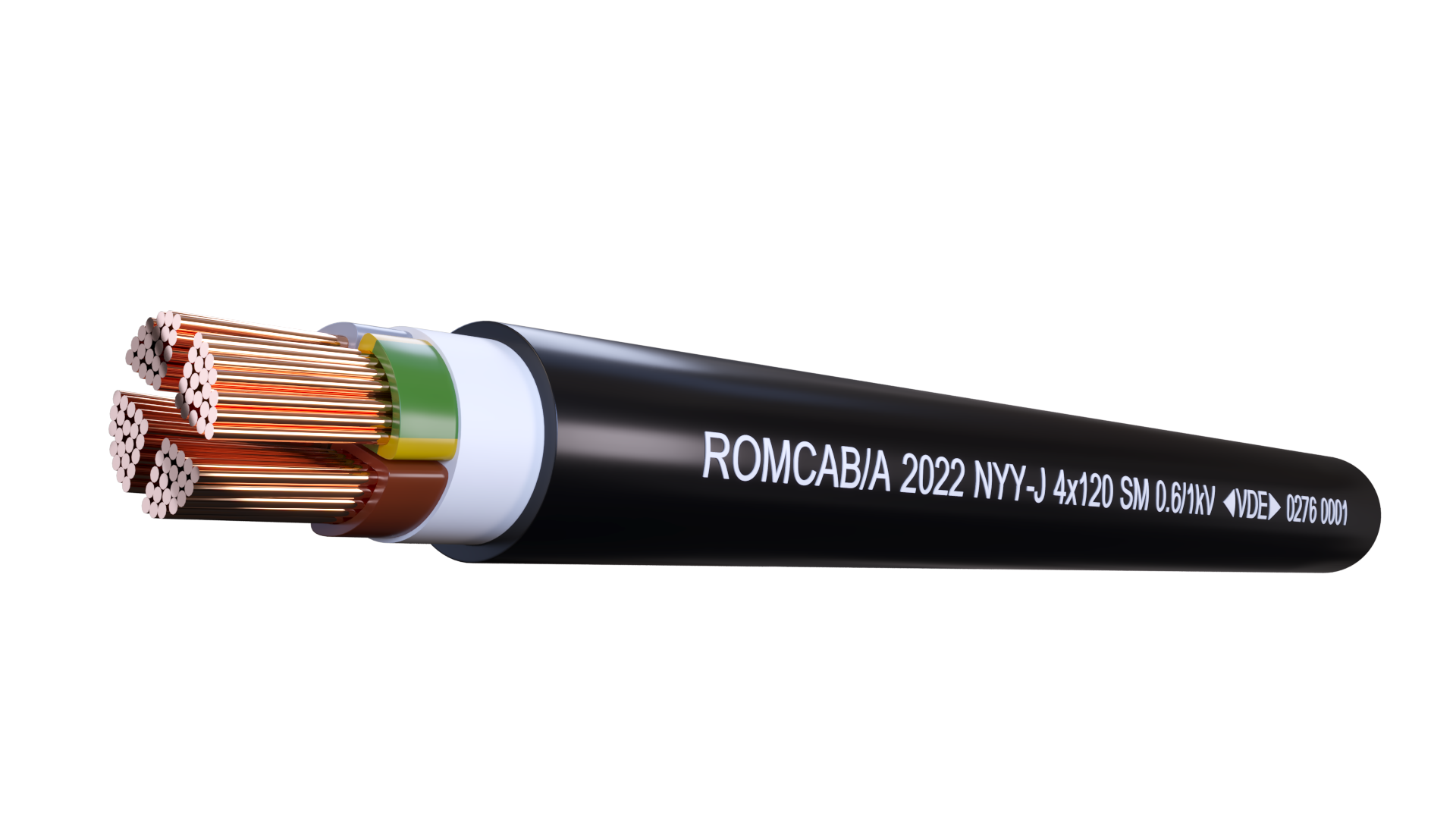

Tridimensional view

Declaration of Performance

File Certification
