Application: For powering household electrical appliances.
The extension cords are made in accordance with the regulations for low voltage equipment, with the essential safety requirements for the application of the CE marking

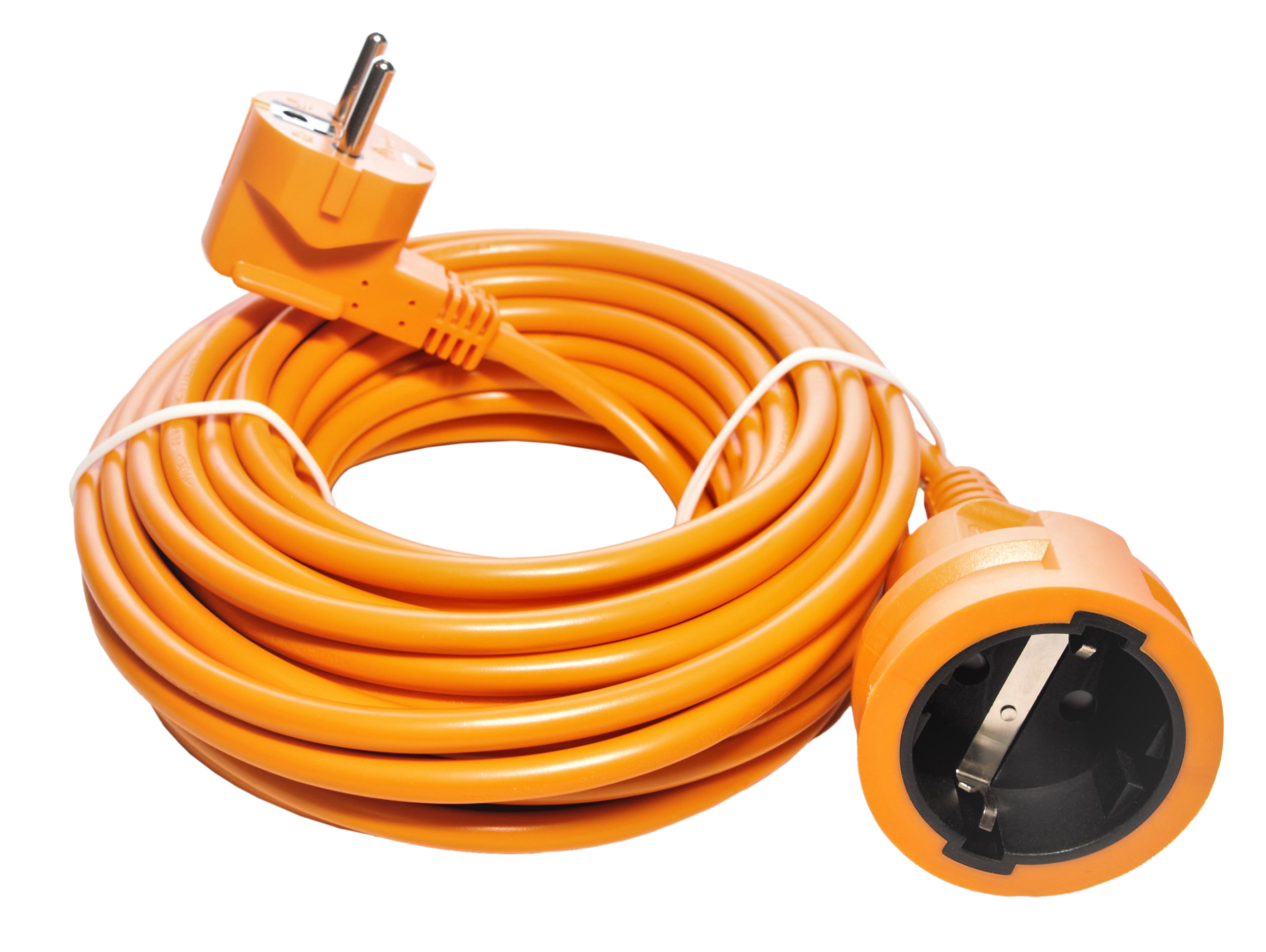

Construction:
1. Cord Plug - Schuko
2. Cord - H05VV-F 3G1 or H05VV-F3G1,5
3. Cord Socket - Schuko
Standards: Plug and socket: SR CEI 60884-1+A1 :2008; DIN VDE 0620-2-1
Cord: EN 50525-2-11
Non rewirable cord extension set : IEC 60884-2-7
Color: According to request
License: Plug – VDE
Cord – VDE HAR
Non rewirable cord extensionset - TÜV Rheinland
Electrical Performance:
Nominal voltage: [V] 250 Volt
Nominal current: H05VV-F 3G1.0 [A] 10 Amper
Maximum power: H05VV-F 3G1.0 [W] 2500Watt
Nominal current: H05VV-F 3G1.5 [A] 16 Amper
Maximum power: H05VV-F 3G1.5 [w] 3800 Watt
Temperature range: °C -40°Ctill +70°C
Operating temperature: short circuit °C 150°C
Short circuit time: max. [sec] 5
Bending radius: x diameter 5
Temperature range: in motion: -40°C till +70°C
Operating temperature short circuit: 150°C
Flammability: Accordance to EN 60332-1-2 - Eca
