H03VVH2-F 300/300V PVC Sheathed Wire

Application: Suitable in dry locations for connections of portable electrical appliances submitted to weak mechanical strength, like radio sets and lighting fittings, but not for heating devices.

Construction:
1.Conductor - Fine-stranded bare copper
2.Insulation - Polyvinylchloride (PVC)
3.Outher sheath - Polyvinylchloride (PVC)

Standards: EN 50525-2-11,
                    IEC 60228 class 5

Core identification: Accordance to HD 308 standard.

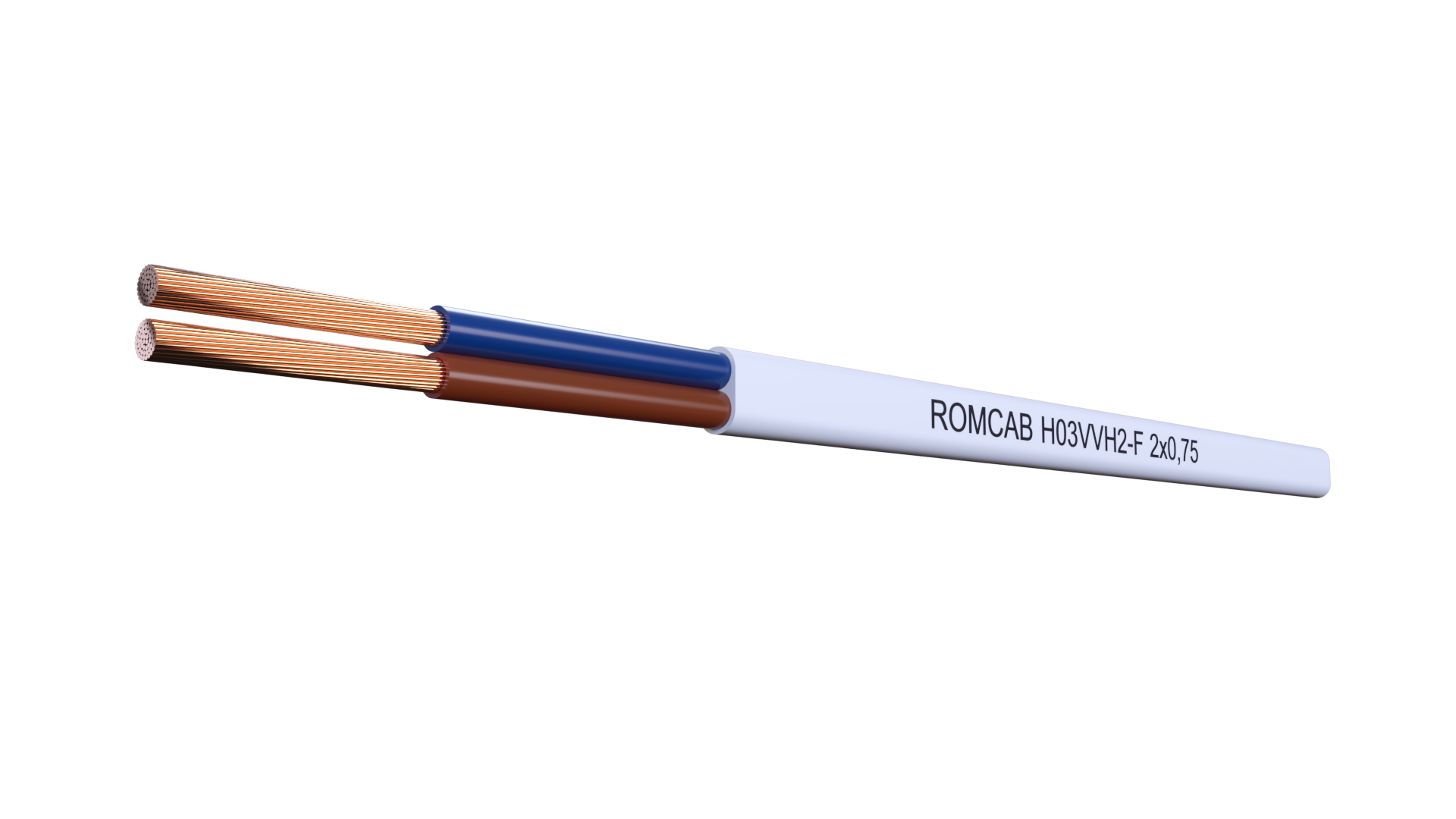

Tridimensional view

Electrical Performance:
Nominal Voltage: 300 / 300 Volt
Test Voltage [V]AC 2000
Short circuit time max. [sec] 5
Bending radius: single core x diameter 6

Temperature range: -15°C till +70°C
Max. short-circuit temp.: +150°C

Fire classification CPR class: EN 50575 – Eca
