H05V2V2-F 300/500V - PVC Flexible Heat Resistant Cord

Application: This cable is suitable for connecting electrical equipment indoor. It should be used in dry and humid locations.

Construction:
1.Conductor - Copper Fine-stranded
2.Insulation - Polyvinylchloride (PVC)
3.Outher sheath - Polyvinylchloride (PVC)

Standards: EN 50525-2-11, IEC 60228 class 5

Core identification: Accordance to HD 308 standard.

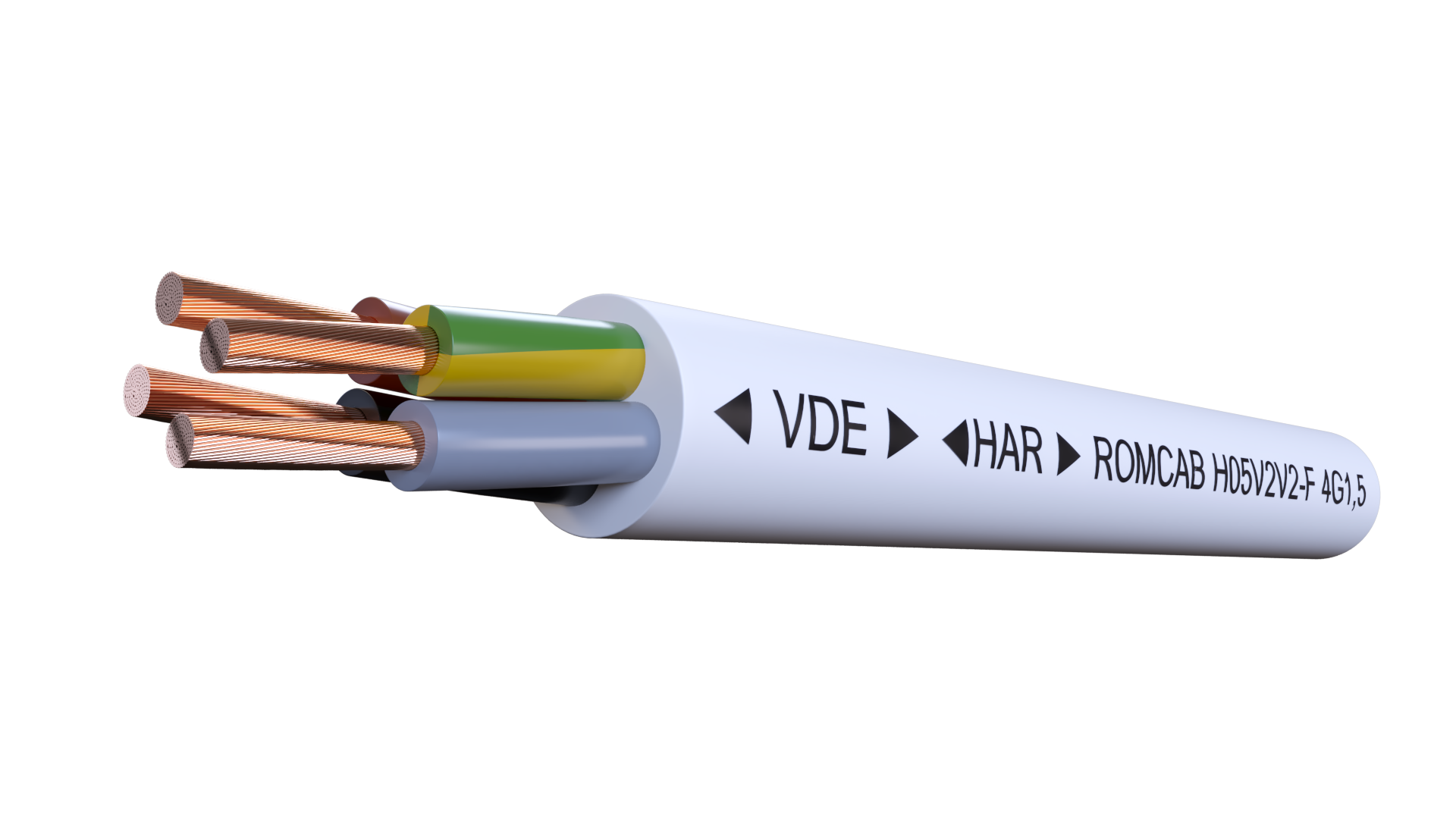

Tridimensional view

Electrical Performance:
Nominal Voltage: 300 / 500 Volt
Test Voltage [V]AC 2000
Short circuit time max. [sec] 5
Bending radius in motion x diameter 5

Temperature range: -30°C till +90°C
Max. short-circuit temp.: +150°C

Fire classification CPR class: EN 50575 - Eca
