H05VV-F 300/500V & H03VV-F 300/300V - PVC Sheathed Wire

Application: H05VV-F: Suitable in dry and humid locations for connections of electrical appliances submitted to medium level mechanical strength, like washing machines, refrigerators, etc. Suitable for heating appliances provided that there is no risk of contact with hot parts.

                        H03VV-F: Suitable in dry locations for connections of portable electrical appliances submitted to weak mechanical strength, like radio sets and lighting fittings, but not for heating devices.

Construction:
1.Conductor - Fine-stranded bare copper
2.Insulation - Polyvinylchloride (PVC)
3.Outher sheath - Polyvinylchloride (PVC)

Standards: EN 50525-2-11
                    HD 21.5 S3 +A1+A2
                    DIN EN 60228 class 5 (construction)
                    ÖVE / ÖNORM E8241 (HD21)

License: This cable is VDE HAR certified

Core identification: HD 308 S2

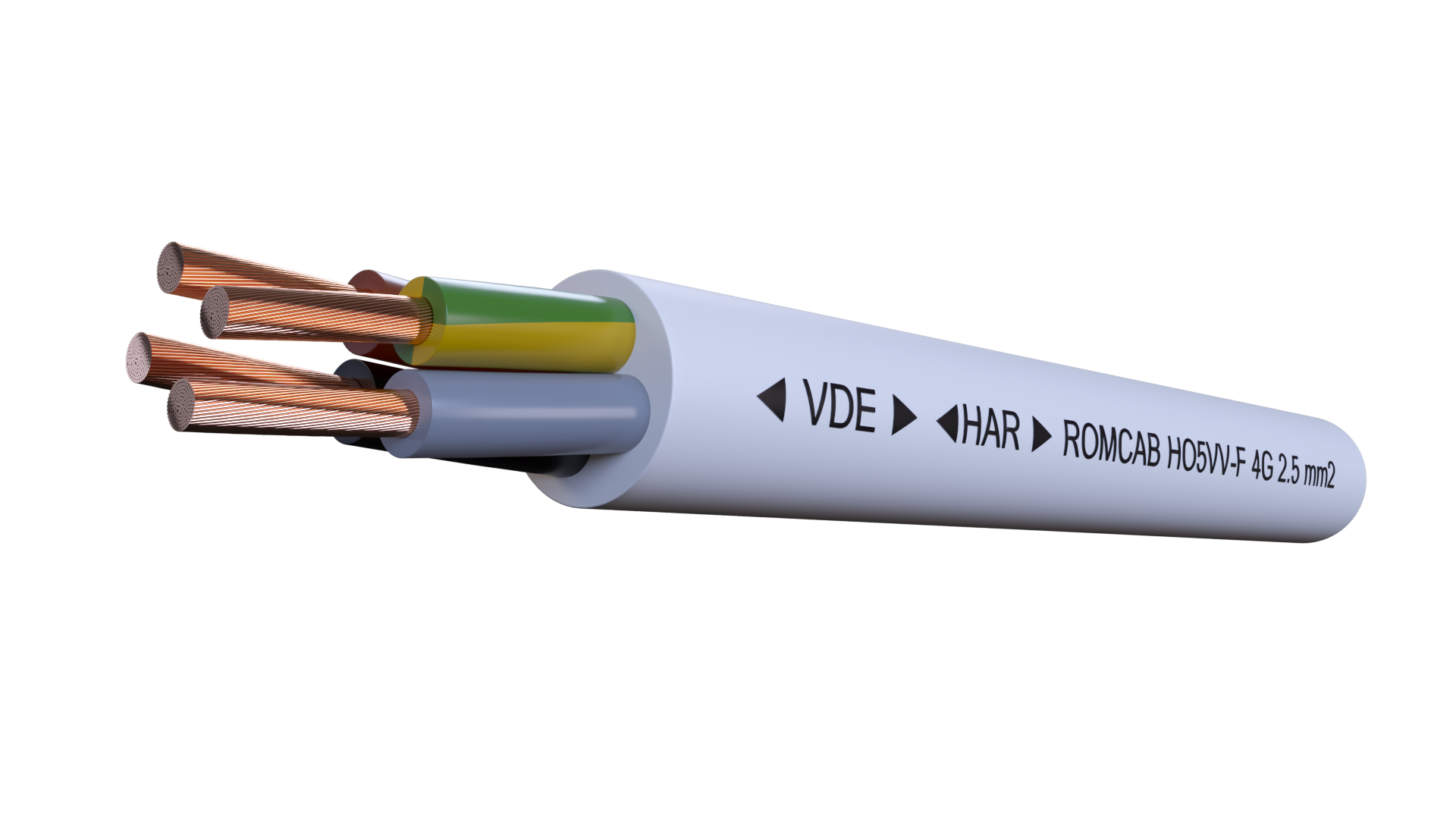

Tridimensional view

Electrical Performance:
Nominal voltage: H05VV-F Uo/U   [V]  300 / 500 Volt
Nominal voltage: H03VV-F Uo/U   [V]  300 / 300 Volt
Test voltage: H05VV-F [V]AC  2000
Test voltage: H03VV-F [V]AC  2000
Short circuit time: max. [sec] 5
Bending radius: min. x diameter  5

Temperature range:  -15°C till +70°C
Max. short-circuit temp.: +150°C

Fire classification CPR class: EN 50575 -Eca
