Application: To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology.

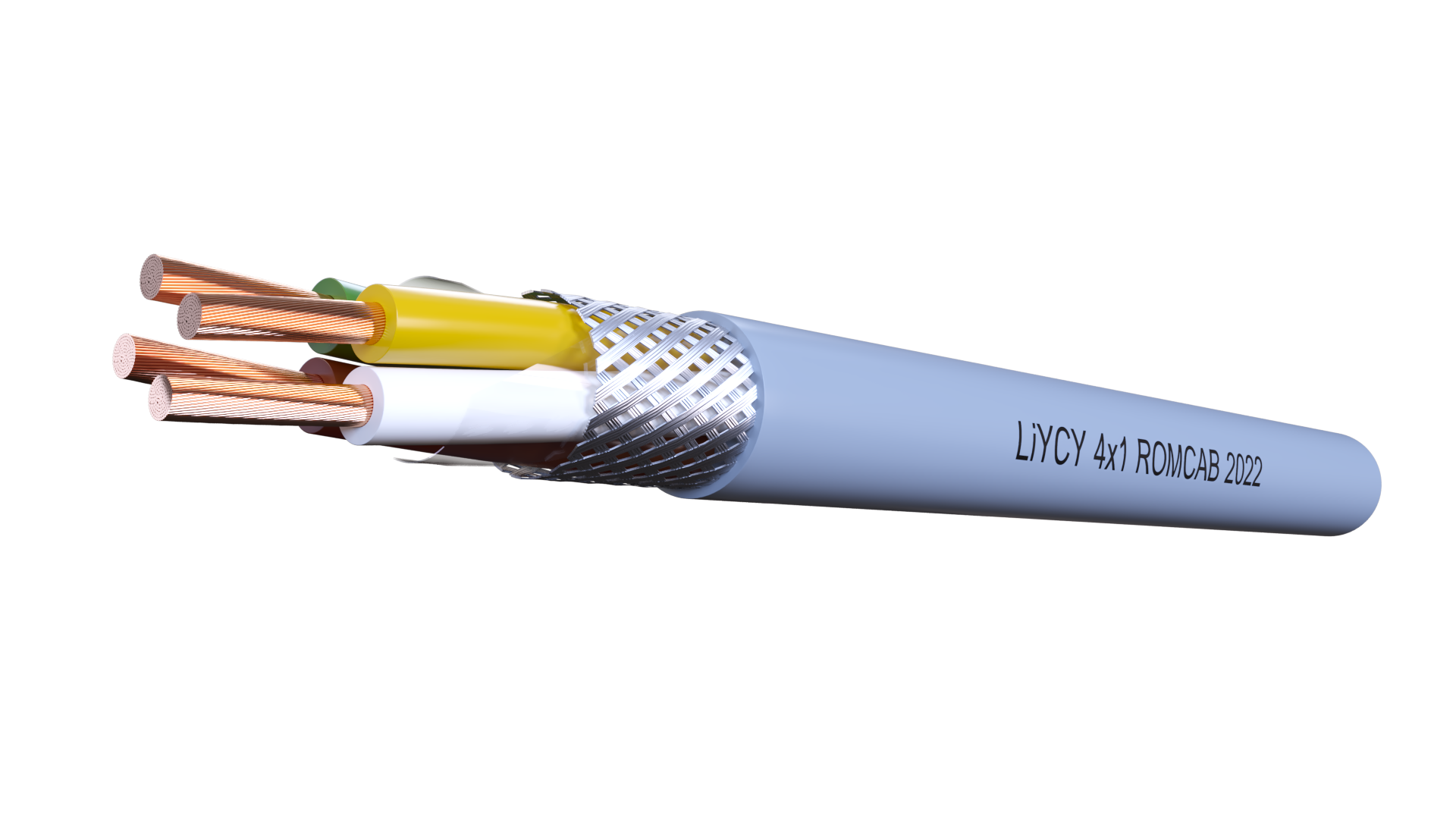

Construction:
1. Conductor - Fine-stranded bare copper
2. Insulation - Polyvinylchloride (PVC)
3. Layer of plastic foil
4. Braid of tinned copper wires
5. Outer sheath - Polyvinylchloride (PVC)
Standards: Adapted to DIN VDE 0812
DIN EN 60228 class 5
Core identification: DIN 47100 or factory standard
Electrical Performance:
Nominal Voltage: Peak [V] 500Volt
Test Voltage: [V]AC 1200Volt
Bending radius in motion x diameter 10
Insulation resistance min [MOhm/km] 100
Temperature range: in motion °C -5°C till +50°C
Fixed °C -20°C till +70°C
Max. Short-Circuit Temperature: +160°C
Fire classification CPR class: EN 50575 – Eca
